Implementing a Fixed Width Pagination in a Spring Boot App with Thymeleaf

I encountered this issue while working on a Spring Boot project that required pagination support for large datasets. I found the problem non-trivial and required a lot of research and bug-fixing to get it right. Here are the results of my work.

I found several solutions which implemented a varying width pagination, but I didn't like that the pagination panel was changing its size during use.

So, here is an implementation of a fixed width pagination in a Spring Boot project that uses Thymeleaf.

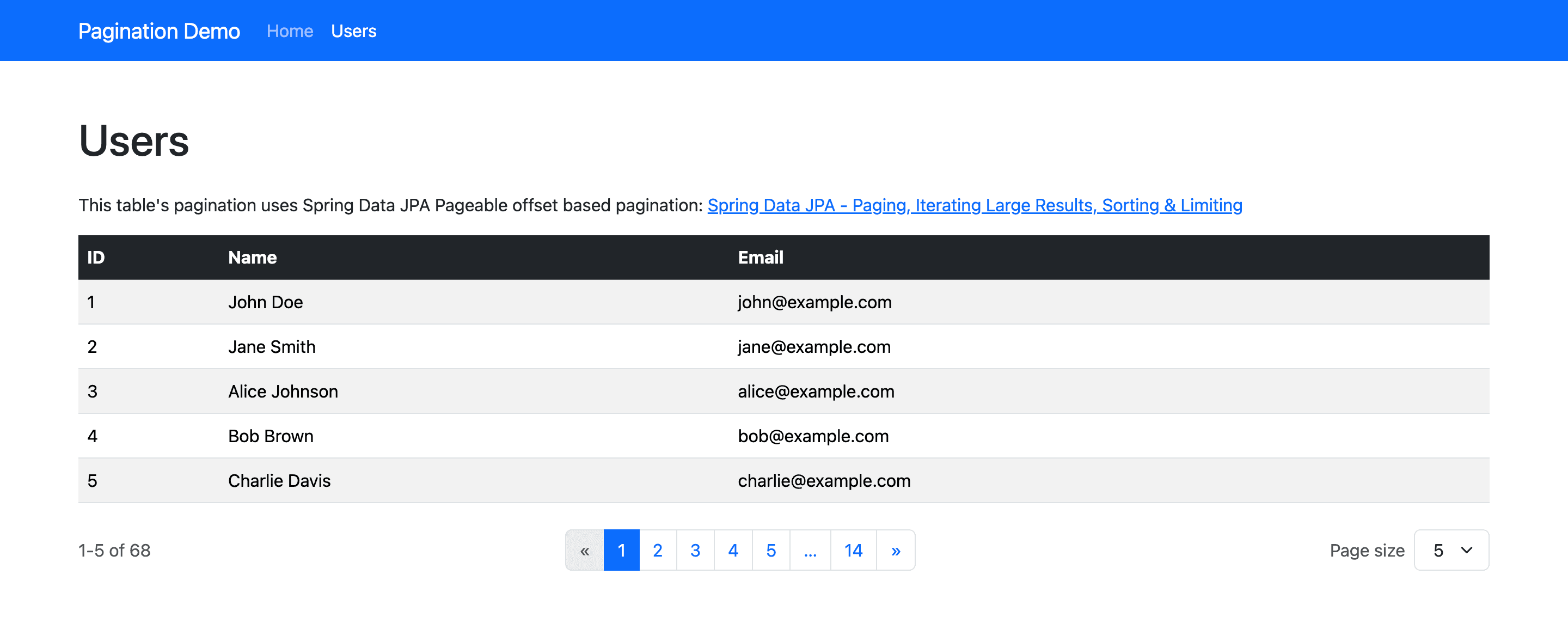

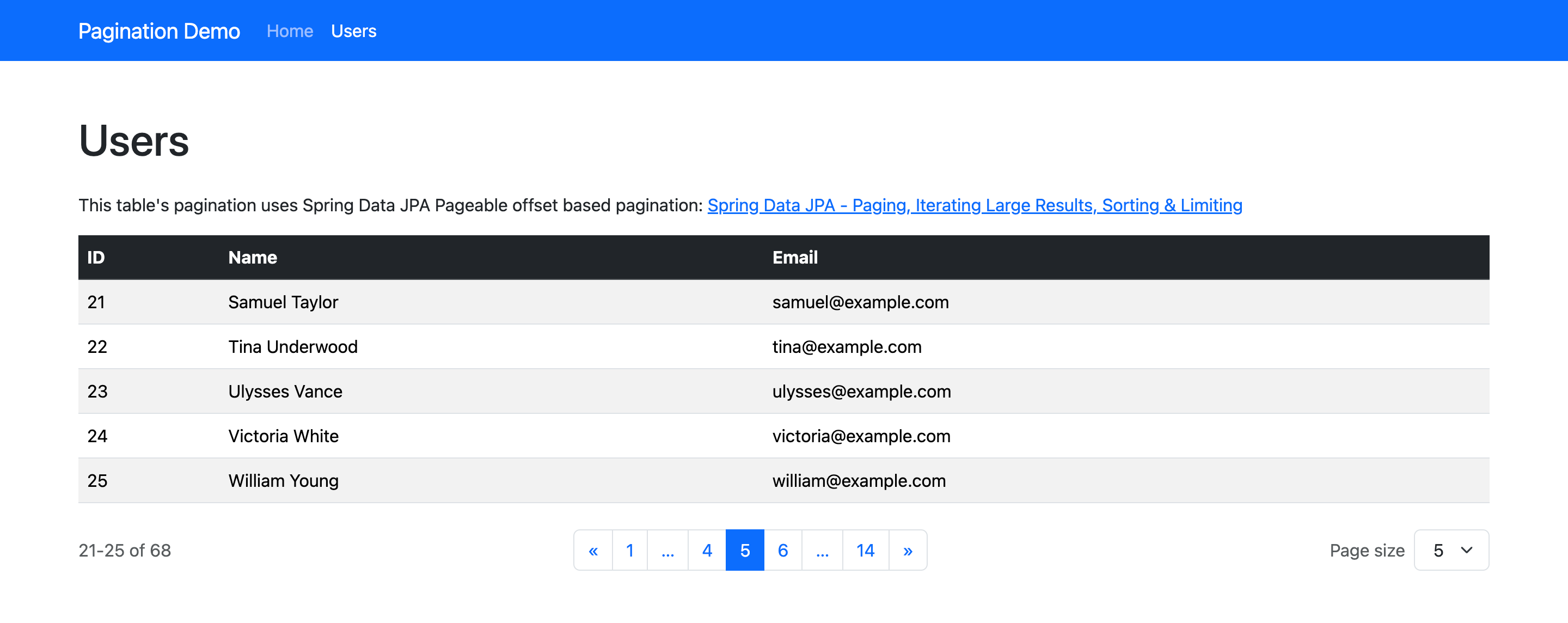

Pagination with an ellipsisPagination with an ellipsis on both sides
Pagination with an ellipsisPagination on with ellipsis on both sides

Project

You can find the project on https://github.com/azdanov/spring-pagination.

These parts are covered in the current article:

src/main/java/dev/azdanov/pagination/user
├── UserController.java
├── UserService.java
├── UserRepository.java
src/main/resources/templates
├── users.html
├── fragments
│   └── pagination.html
src/main/java/dev/azdanov/pagination/util
├── PaginationUtils.java
├── PageItem.java

UserController

The UserController handles HTTP requests and interacts with the UserService to fetch paginated data. It uses Pageable to pass pagination information, such as page size and current page number, to the service for an offset based pagination. A PagedModel is returned to the view, because Page is not stable and can change its implementation between Spring versions.

package dev.azdanov.pagination.user;

import lombok.RequiredArgsConstructor;
import org.springframework.data.domain.Pageable;
import org.springframework.data.web.PagedModel;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
@RequestMapping("/users")
@RequiredArgsConstructor
public class UserController {

    private final UserService userService;

    @GetMapping
    public String listUsers(Pageable pageable, Model model) {
        PagedModel<UserDto> users = userService.getUsers(pageable);

        model.addAttribute("users", users);
        model.addAttribute("pageable", pageable);

        return "users";
    }
}

UserService

The UserService fetches paginated user data from the repository and maps it to DTOs.

package dev.azdanov.pagination.user;

import lombok.RequiredArgsConstructor;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.web.PagedModel;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor
public class UserService {

    private final UserRepository userRepository;

    public PagedModel<UserDto> getUsers(Pageable pageable) {
        Page<UserDto> users = userRepository.findAll(pageable)
            .map(user -> new UserDto(user.getId(), user.getName(), user.getEmail()));

        return new PagedModel<>(users);
    }
}

UserRepository

The UserRepository extends JpaRepository to provide CRUD operations and pagination support. Default methods like findAll(Pageable pageable) are used to fetch paginated data, so it's quite easy to implement pagination in Spring Data JPA.

package dev.azdanov.pagination.user;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface UserRepository extends JpaRepository<User, Long> {
}

Thymeleaf Template

The users.html template displays the list of users and includes the pagination controls.

As a side note, I use the Thymeleaf Layout Dialect to create a layout structure with a main layout and separate pages. The layout:decorate attribute is used to apply the layout to the current template.

And Bootstrap 5.3 is used for styling.

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org"
      xmlns:layout="http://www.ultraq.net.nz/thymeleaf/layout"
      layout:decorate="~{layouts/main}" lang="en">
<head>
    <title>Users</title>
</head>
<body>
<div layout:fragment="content">
    <h1 class="mb-4">Users</h1>
    <p>This table's pagination uses Spring Data JPA Pageable offset based pagination: <a
            href="https://docs.spring.io/spring-data/jpa/reference/repositories/query-methods-details.html#repositories.special-parameters">Spring
        Data JPA - Paging, Iterating Large Results, Sorting & Limiting</a></p>
    <div class="table-responsive">
        <table class="table table-striped table-hover">
            <thead class="table-dark">
            <tr>
                <th>ID</th>
                <th>Name</th>
                <th>Email</th>
            </tr>
            </thead>
            <tbody>
            <tr th:each="user : ${users.content}">
                <td th:text="${user.id}"></td>
                <td th:text="${user.name}"></td>
                <td th:text="${user.email}"></td>
            </tr>
            </tbody>
        </table>
    </div>

    <div th:replace="~{fragments/pagination :: offset-pagination(${users}, ${pageable})}"></div>
</div>
</body>
</html>

Pagination Fragment

The pagination.html fragment handles the pagination controls and navigation. There are a lot of stuff going on, so let's break it down:

  • The pagedModel and pageable objects are passed to the fragment.
  • Various helper variables are created to simplify the code with th:with.
  • An info text is displayed with the current page range and total elements.
  • It generates the pagination structure where the PaginationUtils class is used to calculate the page items.
  • It includes a select element to change the page size and some JavaScript to handle the page size change event (currentUrl is globally set).
<nav th:fragment="offset-pagination(pagedModel, pageable)"
     th:with="page=${pagedModel.getMetadata()}" id="pagination" aria-label="Page navigation"
     class="mt-2 mb-5">
    <div class="d-flex justify-content-between align-items-center">

        <div class="text-muted d-none d-sm-block text-nowrap"
             th:with="start=${page.number * page.size + 1}, end=${T(java.lang.Math).min((page.number + 1) * page.size, page.totalElements)}">
            <span th:text="|${start}-${end} of ${page.totalElements}|"></span>
        </div>

        <ul class="pagination mb-0"
            th:if="${!pagedModel.getContent().isEmpty() && page.totalPages > 1}"
            th:with="currentPage = ${page.number}, totalPages = ${page.totalPages}">

            <li class="page-item" th:classappend="${currentPage == 0} ? 'disabled'">
                <a class="page-link"
                   th:tabindex="${currentPage == 0} ? '-1' : '0'"
                   th:href="@{${currentUrl}(page=${currentPage - 1}, size=${pageable.pageSize})}"
                   aria-label="Previous">
                    <span aria-hidden="true">&laquo;</span>
                </a>
            </li>

            <li class="page-item"
                th:each="pageItem : ${T(dev.azdanov.pagination.util.PaginationUtils).getPageItems(page)}"
                th:classappend="${pageItem.pageNumber == currentPage + 1} ? 'active'">
                <a class="page-link"
                   th:href="@{${currentUrl}(page=${pageItem.pageNumber - 1}, size=${pageable.pageSize})}"
                   th:text="${pageItem.isEllipsis() ? '&hellip;' : pageItem.pageNumber}"
                   th:aria-label="${'Page ' + pageItem.pageNumber}"></a>
            </li>

            <li class="page-item" th:classappend="${currentPage == totalPages - 1} ? 'disabled'">
                <a class="page-link"
                   th:tabindex="${currentPage == totalPages - 1} ? '-1' : '0'"
                   th:href="@{${currentUrl}(page=${currentPage + 1}, size=${pageable.pageSize})}"
                   aria-label="Next">
                    <span aria-hidden="true">&raquo;</span>
                </a>
            </li>
        </ul>

        <div class="d-flex align-items-center">
            <label class="text-muted pe-2 d-none d-sm-block text-nowrap" for="paginationSize">
                Page size
            </label>
            <select class="form-select form-select text-center w-auto" name="paginationSize" id="paginationSize">
                <option th:each="size : ${ { 5, 10, 20, 50} }" th:value="${size}" th:text="${size}"
                        th:selected="${page.size == size}"></option>
            </select>
        </div>
    </div>

    <script th:inline="javascript">
        document.addEventListener('DOMContentLoaded', function () {
            const paginationSizeSelect = document.getElementById('paginationSize');
            const currentUrl = /*[[${currentUrl}]]*/ '';

            paginationSizeSelect.addEventListener('change', function () {
                const newSize = this.value;
                const url = new URL(window.location.origin + currentUrl);

                url.searchParams.set('page', '0');
                url.searchParams.set('size', newSize);

                window.location.href = url.toString();
            });
        });
    </script>
</nav>

PaginationUtils

The PaginationUtils class generates the pagination structure, including ellipses for large datasets.

I found an algorithm online: https://gist.github.com/kottenator/9d936eb3e4e3c3e02598?permalink_comment_id=5146730#gistcomment-5146730

Credits to the author: https://gist.github.com/pk936. I modified it to fit my needs.

Although it had a small bug, where for smaller page sizes it showed the ellipsis on the right side, even though it could display all the pages. I added some additional checks to fix the issue.

I liked this implementation because it has fixed width and doesn't expand or shrink as you navigate through the pages, compared to other solutions I found.

package dev.azdanov.pagination.util;

import org.springframework.data.web.PagedModel;
import org.springframework.lang.NonNull;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.IntStream;

public final class PaginationUtils {

    private static final int CENTER_PAGES = 3;
    private static final int ELLIPSIS_THRESHOLD = 2;

    private PaginationUtils() {
    }

    public static List<PageItem> getPageItems(@NonNull PagedModel.PageMetadata metadata) {
        int currentPage = (int) (metadata.number() + 1);
        int totalPages = (int) metadata.totalPages();

        return calculatePagination(currentPage, totalPages);
    }

    private static List<PageItem> calculatePagination(int currentPage, int totalPages) {
        if (totalPages <= CENTER_PAGES + ELLIPSIS_THRESHOLD * 2) {
            return createFullPagination(totalPages);
        }

        int startPage = Math.max(currentPage - 1, 1);
        int endPage = Math.min(currentPage + 1, totalPages);

        boolean showLeftEllipsis = startPage > ELLIPSIS_THRESHOLD;
        boolean showRightEllipsis = endPage < totalPages - ELLIPSIS_THRESHOLD;

        if (!showLeftEllipsis && showRightEllipsis) {
            return createLeftPagination(totalPages);
        }
        if (showLeftEllipsis && !showRightEllipsis) {
            return createRightPagination(totalPages);
        }
        if (showLeftEllipsis && showRightEllipsis) {
            return createCenterPagination(startPage, endPage, totalPages);
        }

        return createFullPagination(totalPages);
    }

    private static List<PageItem> createLeftPagination(int lastPage) {
        int end = CENTER_PAGES + ELLIPSIS_THRESHOLD;

        List<PageItem> pages = new ArrayList<>(range(1, end));
        pages.add(new PageItem(end + 1, true));
        pages.add(new PageItem(lastPage, false));

        return pages;
    }

    private static List<PageItem> createRightPagination(int lastPage) {
        int start = lastPage - CENTER_PAGES - 1;

        List<PageItem> pages = new ArrayList<>();
        pages.add(new PageItem(1, false));
        pages.add(new PageItem(start - 1, true));
        pages.addAll(range(start, lastPage));

        return pages;
    }

    private static List<PageItem> createCenterPagination(int startPage, int endPage, int lastPage) {
        List<PageItem> pages = new ArrayList<>();
        pages.add(new PageItem(1, false));
        pages.add(new PageItem(startPage - 1, true));
        pages.addAll(range(startPage, endPage));
        pages.add(new PageItem(endPage + 1, true));
        pages.add(new PageItem(lastPage, false));

        return pages;
    }

    private static List<PageItem> createFullPagination(int lastPage) {
        return range(1, lastPage);
    }

    private static List<PageItem> range(int start, int end) {
        return IntStream.rangeClosed(start, end)
            .mapToObj(i -> new PageItem(i, false))
            .toList();
    }
}

PageItem

The PageItem class represents a single page in the pagination component. It helps us to distinguish between regular pages and ellipses. Another way is to return -1 instead of creating a new class, but then in the Thymeleaf fragment it is impossible to distinguish between a regular page and an ellipsis to make it a navigable link.

package dev.azdanov.pagination.util;

public record PageItem(int pageNumber, boolean isEllipsis) {}

Conclusion

I hope this article helps you with implementing a pagination in your projects. If you have any questions or suggestions, feel free to contact me.

Thank you for reading!
